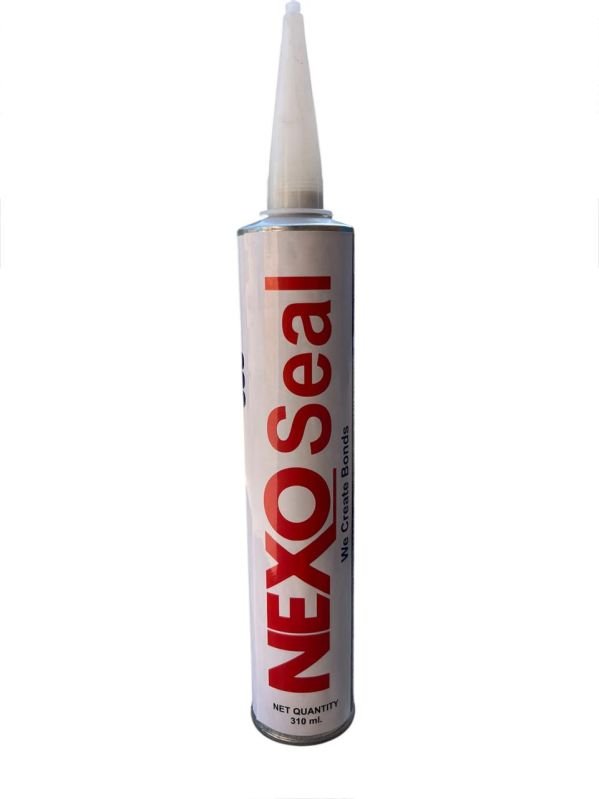

NEXO SEAL PU GLASS SEALANT

description:

nexo seal pu auto windshield glass sealant is a one part, high viscosity, polyurethane

based sealant which cures by the action of air moisture and changes the product from a

pasty to an elastomeric mastic. it offers excellent adhesion on glass and metal. it is most

suitable for bonding windshield inthe automotive industry.

features:

♦ highmodulas&tensile strength

♦ excellent adhesion on glass and metal surface

♦ outstanding durability

♦ permanently flexible

♦ weatherproof

♦ good uv resistance

uses:

sealing for automotive windscreen, windows and scuttles sealing in

automotive, caravan, ship bulding and railway industry

limitations:

avoidexposure to highlevel of chlorine.

avoidcontactwithalcohol andother solvent cleaners during cure.do not cure in

the presenceof curing silicone sealants.

do not apply when a moisture vapour transmission condition exists at timeof application, as

this can cause bubbling within the sealant.

page | 2

joint design:

the specified sealant bead size should be calculated to comply with the compression and

extension capabilities of the sealant in relation to the anticipated joint width due to

expansion and contraction.

sealant widthshould never be less thansealant depth.

generally calculation of the width of pu sealant bead should be computed on the basis of

wide movement accommodation of ± 25%.

compression and extension capability minimum bead size should not less than 3mm to

accommodate movement.design joint depth of which ratio width becomes 0.5to 1.

joint depth maximun 15mm.

application:

 surface must be clean and dry. remove all dirt, oil, grease, detergentsandloose

material.

 mask smooth surface to simplify clean up.

 cut tip off cartridge. cut nozzle to desired size at 45° angle. insertcartridgeinto

caulking gun.

 insert cartridgeintocaulking gun.

 push sealant aheadfor uniform bead.

 tool within 15 minutes with joint nail or putty knife.

 clean off excess sealant with m.e.k. or toluene before dry

 do not apply the sealant below +5°c. warm up the cartridges or sausageat 20°c if

application by coldweather

specification:

type thixotropicpaste

color black

odour light

appearance non-sagging paste

specific gravity 1.5 to 1.6

shore a hardness 40-45

modulus at 100% e 0.8

skinning time 40 – 60 minutes

cure rate 3mm per 24 hours (23°c & 50%r.h.)

application temperature +5°c to +35°c

storage temperature between (+5°c ~ +25°c)

shelf life 12 months (+5°c~ +25°c) from date of packing.

caution:

uncured sealant may irritate eyes. in case of contact with eyes, flush withwater and

obtain medical advice.useinwell ventilatedarea.

shelf life:

use within 12 months from date of production. store in dry and coolconditionbetween5°c&

30°c
